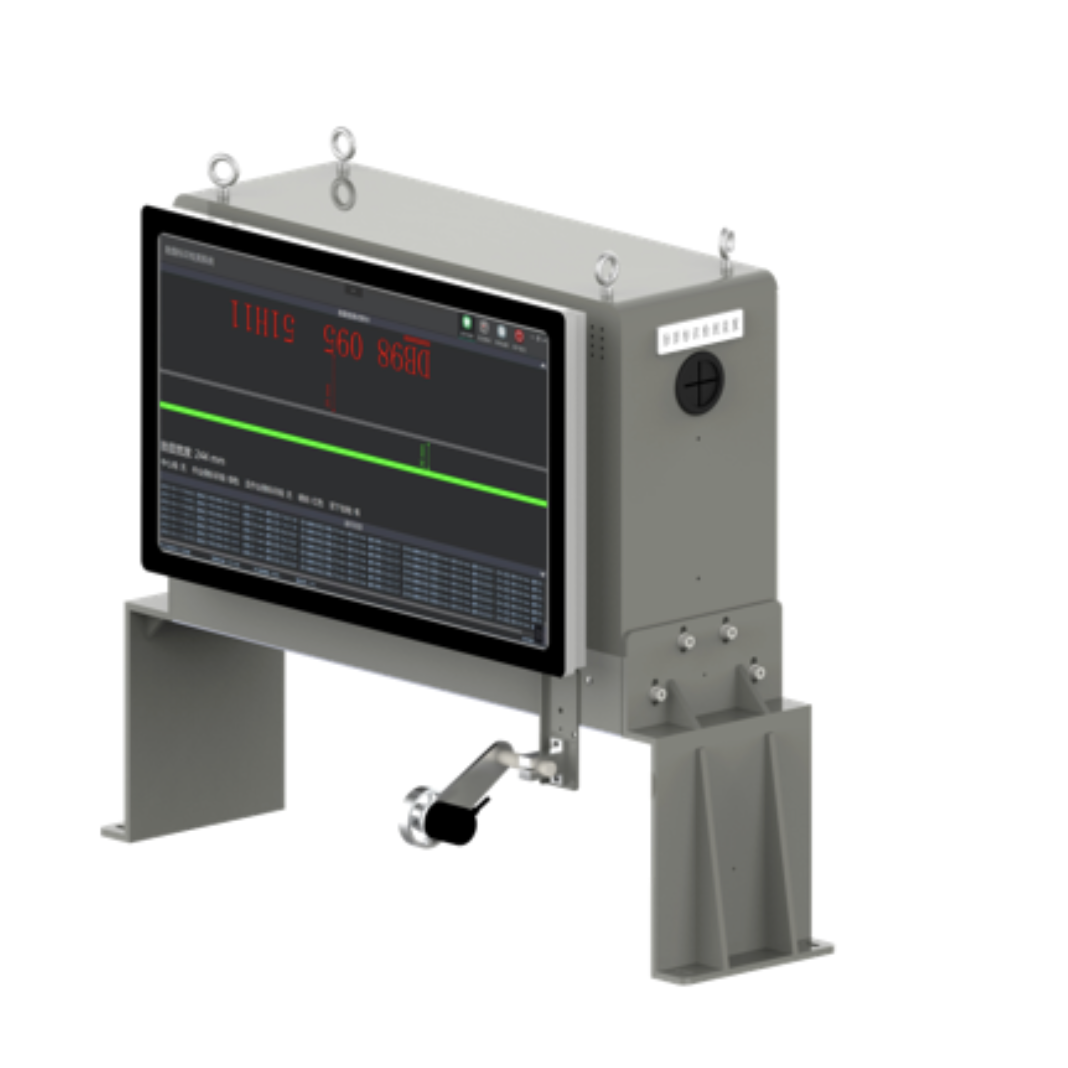

Tire Tread Identification AI Visual Inspection Equipment

The equipment can realize the detection of the center line (with or without, and color), marking line(position, with or without and color) and spray code(content, color, position) of tread marking in the press-our process.

Equipment Features:

1.No change to the production line, easy to install and debug;

2.Algorithm is flexible, parameter threshold can be adjusted;

3.Using AI deep learing technology,high recognition efficiency;

4.UI interface customization, to meet customer personalized needs;

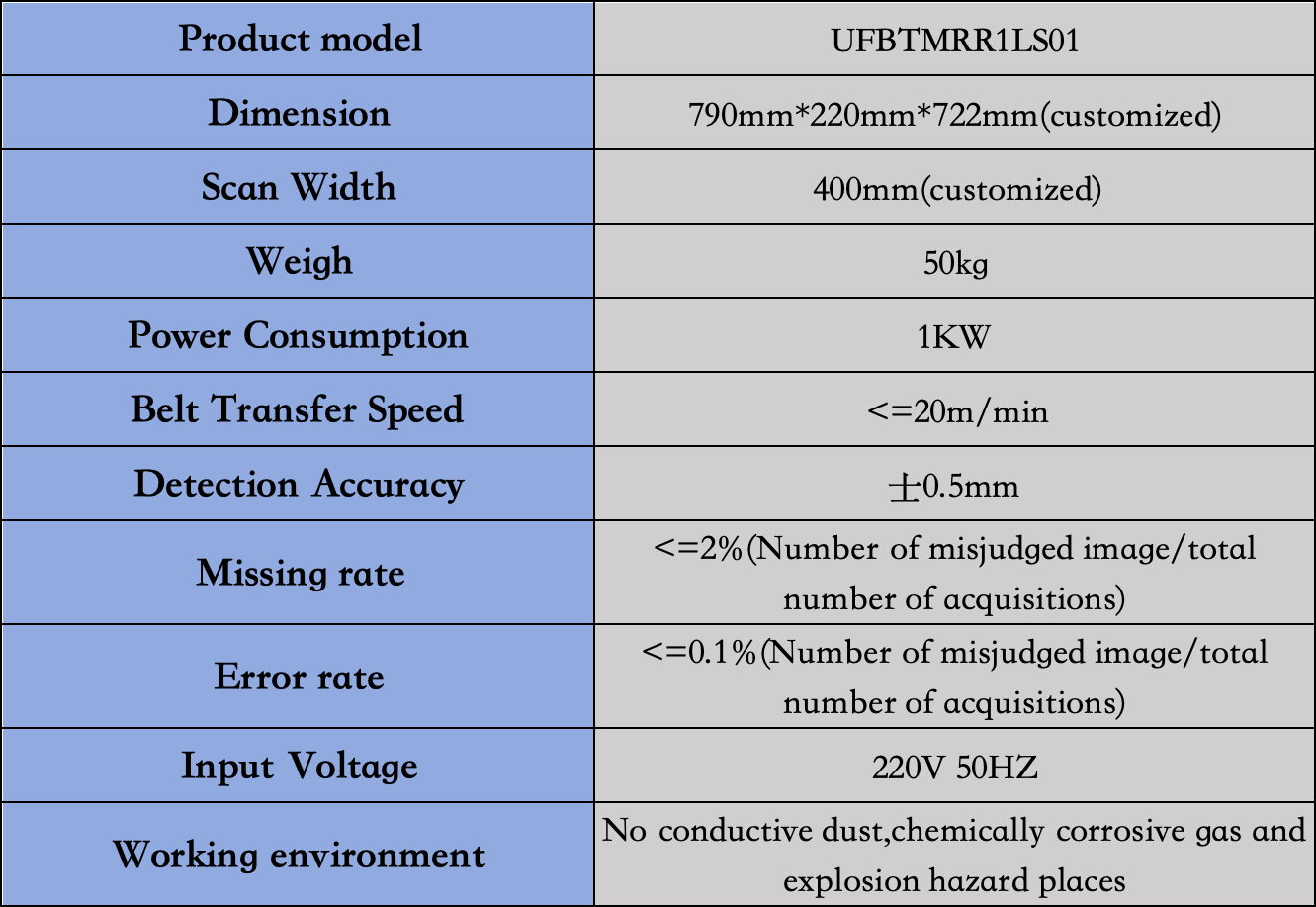

Specification Parameter

Product Value:

1. Realize the transformation from manual sampling to ful equipment inspection, which can realize the function of onlinedetection of tread marking and avoid quality accidents due to errors in marking lines;

2. Achieve seamless connection with MES system to avoid separate information;

3. Through the adjustment of the parameter threshold, under the premise of ensuring quality, taking into account thecontinuity of production;.

4. By improving the detection, reduce the RPN value, so as to meet the requirements of the OEM audit;

5. Through the statistics of defect categories, the transformation from control in the matter to prevention in advance is realized.

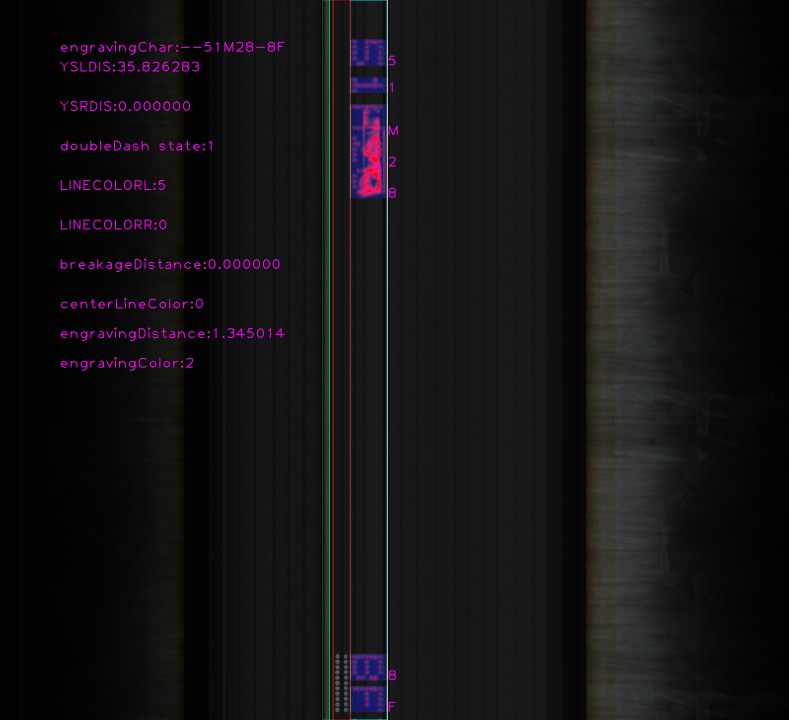

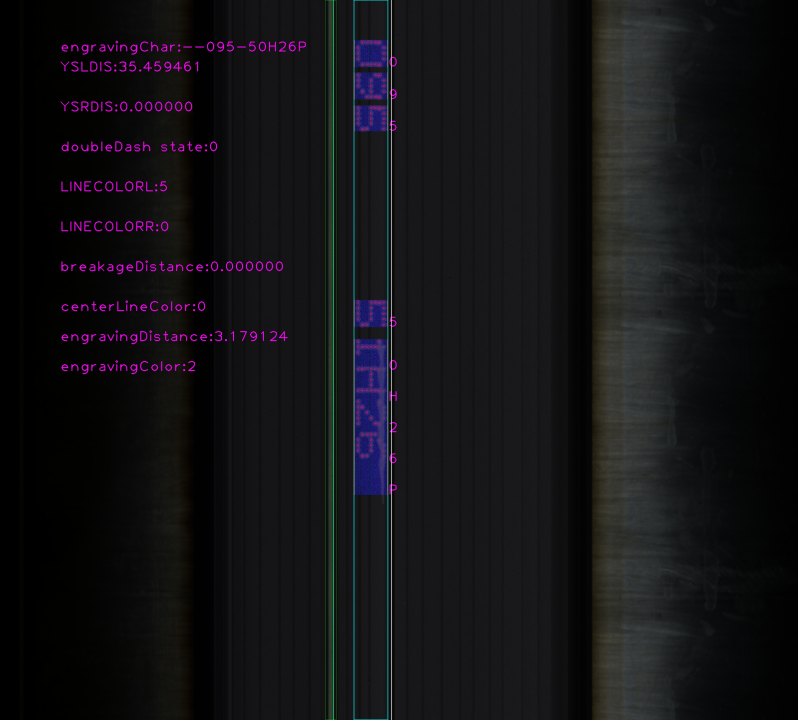

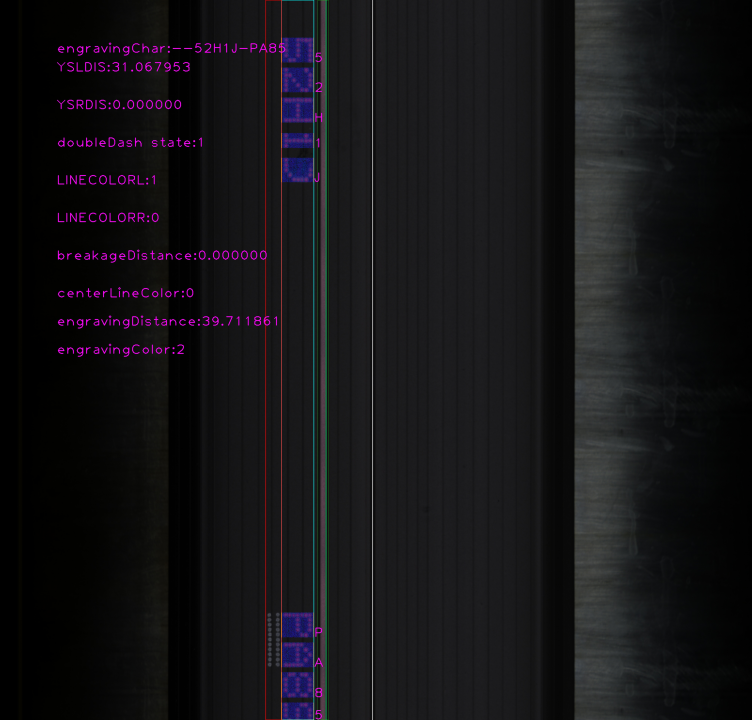

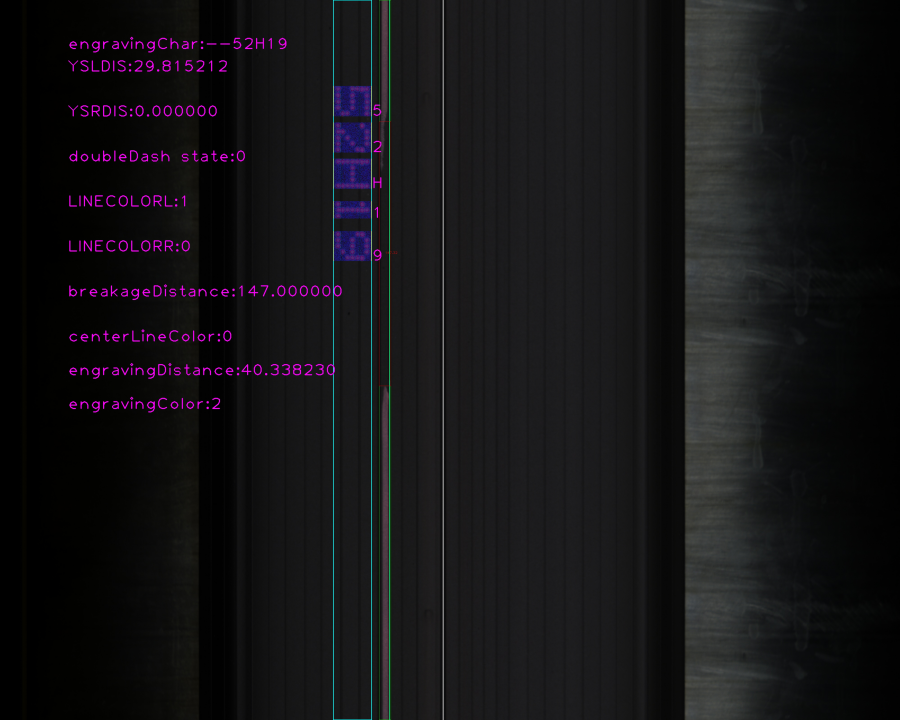

Example of Poor Tread Marking Detection

Code Error

Spray Smear

Jet Code with drag line

The color line is broken
