小优智能科技有限公司成立于2015年底，是一家专注于高精度3D机器视觉模组研发、生产及销售的高科技企业。
公司自主研发的3D机器视觉模组采用激光/DLP白光编码光栅结构光+双工业相机方案，还原物体三维信息，广泛应用于消费电子领域、工业领域和安防领域，具有精度高、速度快、成本低的优势。
Phone+86 150 0532 6997
+86 130 4749 9893
+86 130 4749 9893
ENG
Character
Ø Independently developed MEMS infrared laser scanner
Ø Binocular Sensor+RGB Camera Module
Ø The 3D reconstruction algorithm of encoded structured light and in vivo calibration algorithm
Ø Mono video streaming and color video streaming
Ø Small volume,Light-weight, The integrated installation is flexible and convenient
Ø Widely used in face recognition and other fields of security and consumer goods
Specs
Product Model | UFGNRTC1IR00 |
FOV | 50°×40° |
Z accuracy (mm) | 0.2~0.5 |
Tacq(s) | 0.6 |
Measurement Range (mm) | 200~600 |
Connector | USB3.0 |
Dimensions (mm) | 125×35×18 |
Laser Class | Class Ⅰ |
TOP(℃) | 0~+45 |
Tstg(℃) | -5~+60 |
Apply

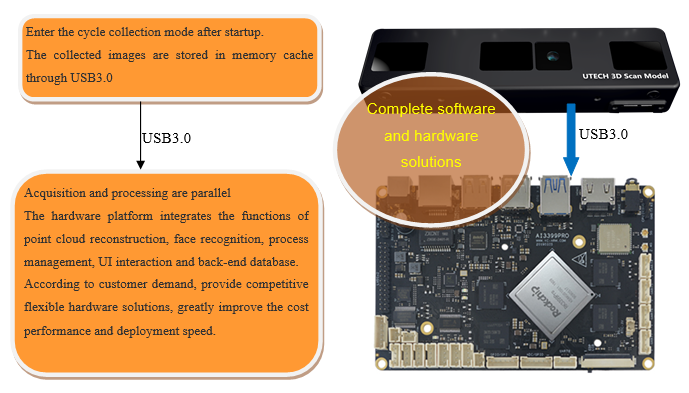

l The 3D scanning module is connected to the embedded ARM platform or Windows platform through the USB3.0 interface.
l Provides the compilation environment, the complete reconstruction identification related SDK and API interface.
l Provide face registration SDK package, including common database management functions (add, delete, find face information, etc.).
l ODM can be designed and develop customer-defined recognition algorithm hardware platform. Currently, it can support common x86 hardware platforms and common embedded hardware platforms such as RK3399 series and NVIDIA Jetson series, including the development of underlying drivers and GPU acceleration.

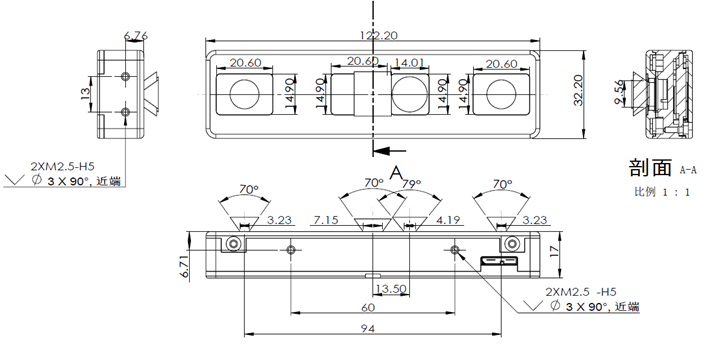

Size(mm)
Contect Phone No: +86186 6198 8261
*
*
*
*
