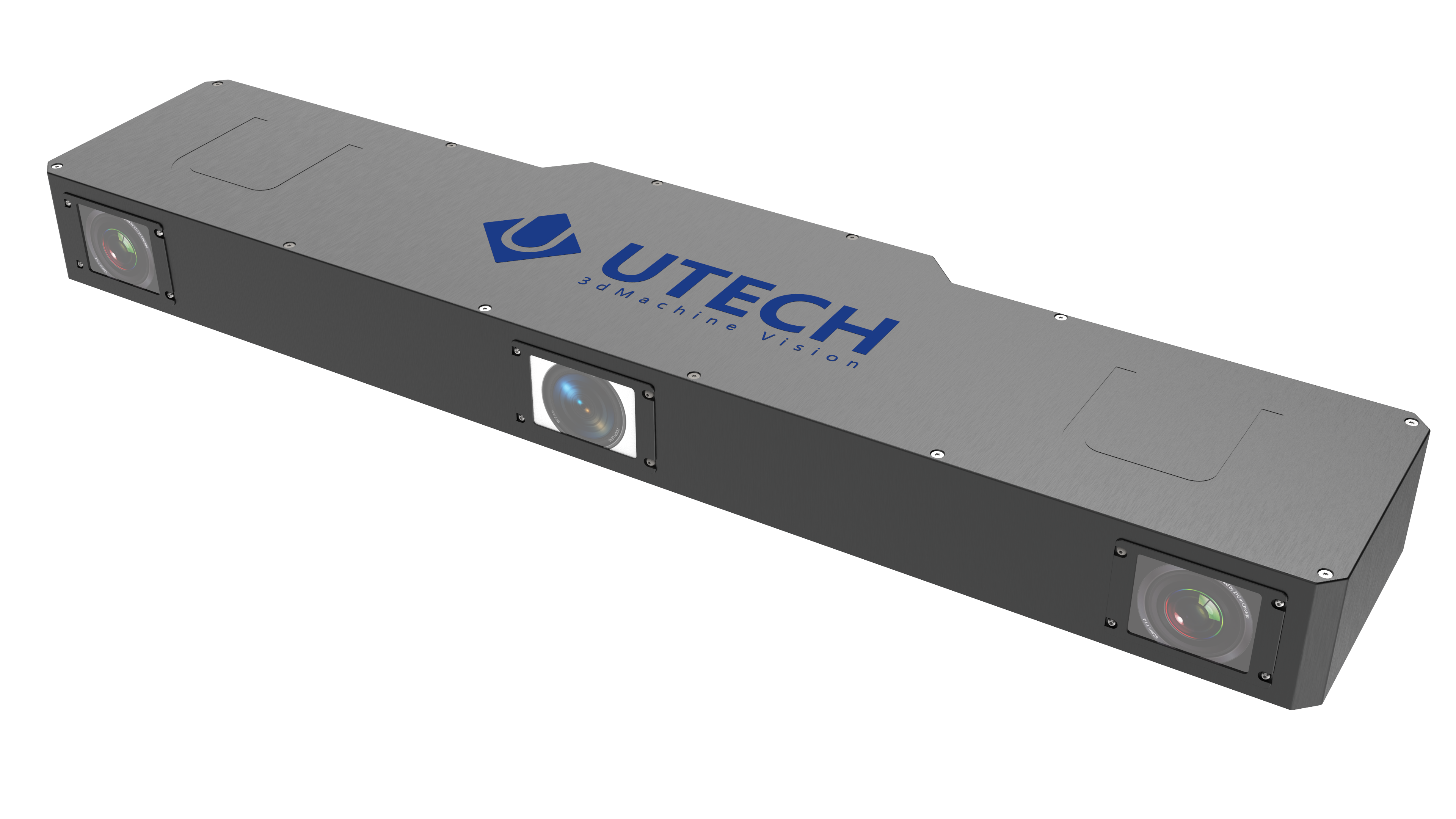

UTECH 3D Scanner LV

UTECH 3D Scanner LV is composed of a white light DLP scanning module, a high-speed and high-precision binocular stereo camera, and a drive control system. It adopts the independently developed coded grating structured light solution and a specially designed large field of view structure layout, so that the optimal working distance of machine vision application is 1 to 2 meters, which can ensure the Z-axis accuracy within the range of 0.5 to 2mm, and the maximum working distance can reach 3 meters. It can be widely used in large field of view scenes for 3D scanning and reconstruction of box surfaces, depalletizing and stacking, and other usage needs.

ØEmbedded solution, built-in reconstruction and data processing core;

ØConfigure conventional self-development mode and server mode, which can be selected independently;

ØIntegrated reconstruction algorithm, directly output ASC, PLY format point cloud data;

ØSDK is provided for secondary development by customers;

ØFast acquisition and modeling speed, high accuracy and high brightness;

ØUsing Gigabit network cable connection, suitable for long-distance transmission in industrial scenes;

ØFar baseline design, suitable for long-distance and large-viewing-field scenes;

ØCan be widely used in machine vision fields such as depalletizing, stacking, material grabbing, etc.
